Polymer Flow Solutions is a medical extrusion engineering practice. Pebax, PEEK, melt fluoropolymers, custom AM filament. Process development, line design, tooling, install. Collaboration over consulting.

// PRACTICE READOUT REV. 01.02.26
Years in extrusion30+
Years in medical20+
Industries served04
Process disciplineSingle & multi-lumens & profiles
Material rangePebax → PTFE
Temperature ceiling400°C / PEEK
Status● ACCEPTING CLIENTS
// WHERE TO FIND JONATHAN

On the floor & in the room.

EVENTS LOG / 2026–27

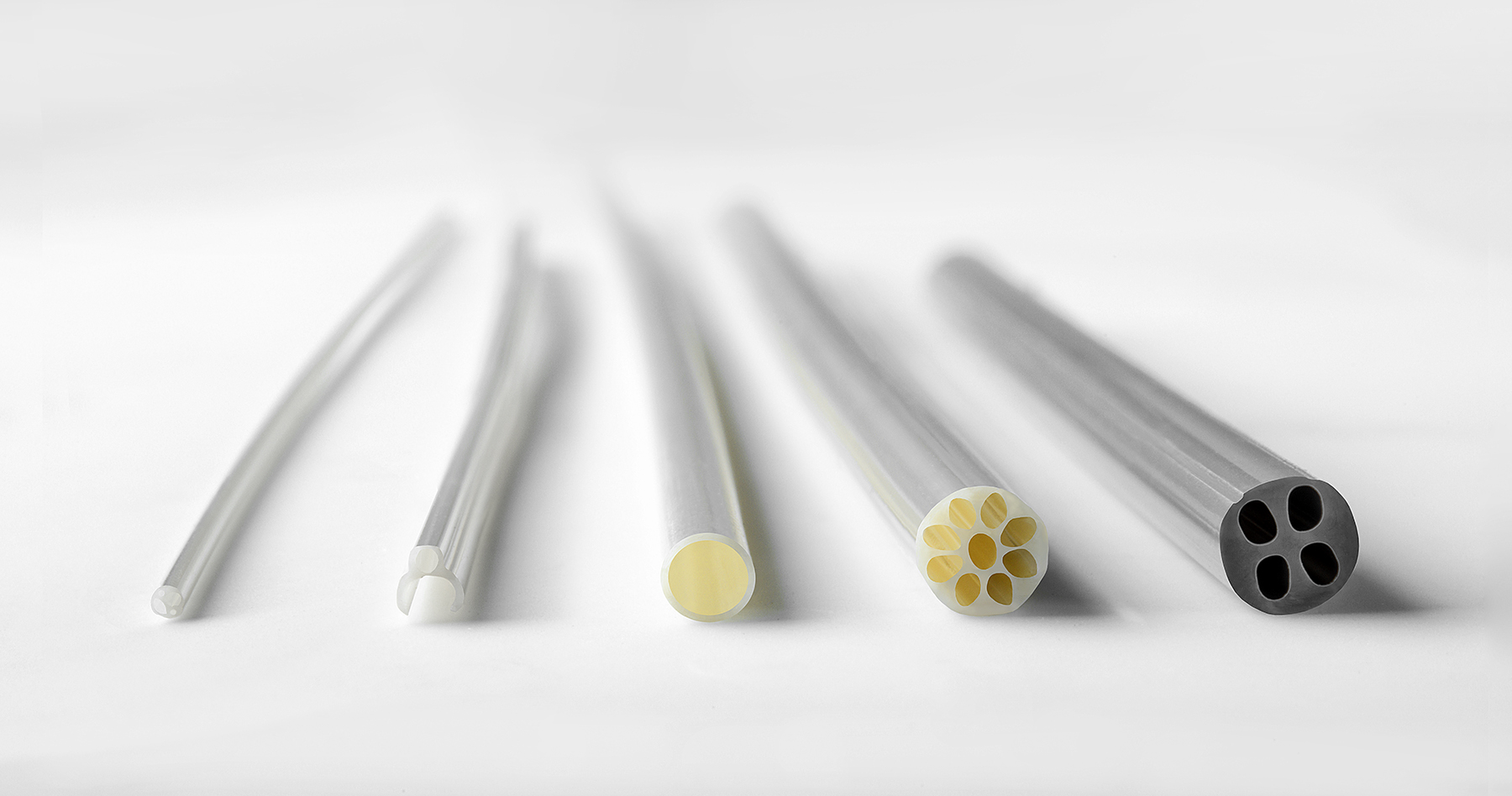

Medical extrusion tubing cross-sections: single-lumen, multi-lumen and profile tubes side by side
§ 01 / 05 — OUR STORY

From operator to founder.

Polymer Flow Solutions was founded by Jonathan Jurgaitis after thirty-plus years at the front of medical and industrial extrusion. Every role pointed at the same conclusion: the hardest problems get solved when experience moves freely between people.

1990s
Polytec Plastics
Operator → Shift Supervisor → Production Manager · St. Charles, IL

Foundation in polymer extrusion processes, properties, and specifications. Custom extruded profiles and pipe. Plant management and sales rounded out the operator-side training.

01
2000s
International Polymer Engineering
Entry into medical extrusion · Materials research

A new polymer vocabulary. Correlating unfamiliar materials with familiar processes. High-temperature extrusion mastered across medical, aerospace, and additive manufacturing — earning industry recognition.

02
2010s
Spectrum Plastics Group / formerly Apollo Medical Extrusion
Introduced high-temp capability · French-scale catheter line · AM filament

Launched standardized French-scale catheter tubing; AM FFF filaments for medical prototyping; developed the process to fully crystallize PEEK tubing during extrusion. Published as white papers and conference talks.

03
2020s
Biomerics
Director of Extrusion · Salt Lake City, UT

Oversaw the implementation of new extrusion processes at multiple locations. Cross-site facilities planning, machinery installation, and process initiation.

04
2025
Polymer Flow Solutions
Founder · Independent practice

An independent practice built on a single idea: that the medical extrusion industry advances faster when expertise is shared. Working alongside processors and visionaries to improve, innovate, teach, and progress the extrusion process.

05
Crystallized PEEK microbore tubing, opaque off-white
§ 02 / 05 — OUR SPECIALTY

The hard problems.

Where the polymer is exotic, the temperatures are punishing, and the spec sheet is unforgiving — that is the baseline.

Discuss a project →
// SP.01

Catheter & multi-lumen extrusion

Single- and multi-lumen catheter extrusion process development and continuous improvement. Translating device intent into a stable, scalable line.

CatheterMulti-lumenValidation
// SP.02

High-temperature polymer extrusion

PEEK, PEI, Sulfones and the materials most shops avoid. In-line crystallization and stress-relieving — the capability set we spent twenty years building.

PEEKCrystallizationStress relief
// SP.03

Melt fluoropolymers

FEP, PFA, ETFE for heat shrink, jacketing, engineered tubing. Process know-how across the melt-fluoro family — and when paste-PTFE is the right answer instead.

FEPPFAHeat shrink
// SP.04

Medical materials & correlation

Pebax, TPU, highly crystalline materials, engineered polymers for delivery systems. Material-to-process correlation — especially around substitution and supply.

PebaxTPUMaterials R&D
// SP.05

Line spec / tooling / install

Specification and design of extrusion lines — specialized upstream, downstream, secondary equipment. Tooling, fixturing, machinery modification, cross-site PM.

Line designToolingInstall
// SP.06

Custom FFF filament for AM

Medical and engineering AM filament with radiopaque, color, and reinforcement additives. The compounding and dimensional discipline of medical extrusion, brought to FFF.

FFFAdditivesCompounding
// MATERIALS · PROCESS LIBRARY 14 ENTRIES
// MATERIAL · M.01

Pebax

Pebax (polyether block amide) is one of the core materials in Jonathan's catheter and delivery-system work, and it sits at the start of the practice's material range, Pebax to PTFE. The work centers on material-to-process correlation: qualifying grades and substitutions, matching the die to the resin, and setting drying and melt conditions so the line holds dimension. Designers lean on Pebax because medical grades step predictably from roughly 25D to 72D, which makes stiffness transitions along a shaft easy to plan, and because of its elastic memory, torque transfer and kink resistance.

  • Grade ladder: 3533 near 35D, 5533 near 55D, 6033 and 7233 in the 60D to 72D band
  • A switch to TPU or another grade is correlated against the part's real requirements, not the datasheet
  • Needs proper drying before extrusion
  • A die cut for a stiff nylon will not run a soft Pebax grade cleanly
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.02
Clear thermoplastic polyurethane (TPU) pellets
TPU pelletsPhoto: Luigi Chiesa, Wikimedia Commons, CC BY-SA 3.0, cropped

TPU

Thermoplastic polyurethane sits next to Pebax in Jonathan's medical materials and correlation work, including as a substitution candidate when cost, supply or a durometer target changes. TPU brings elasticity, abrasion and tear resistance and good fatigue life, and polyether-based grades offer hydrolytic stability for blood-contact and vascular use. It is not a drop-in swap for Pebax: some grades match polyamide stiffness at room temperature and then soften in the body as heat and moisture take effect, and TPU is less forgiving on the line.

  • Moisture-sensitive: inadequate drying is the most common and costly extrusion defect
  • Biocompatibility (ISO 10993, USP Class VI) is grade-specific; verify the exact grade
  • Can be hard to predict in the melt and degrade under shear if the heat profile is off
  • Qualify a switch with small-batch trials on production-representative tooling
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.03

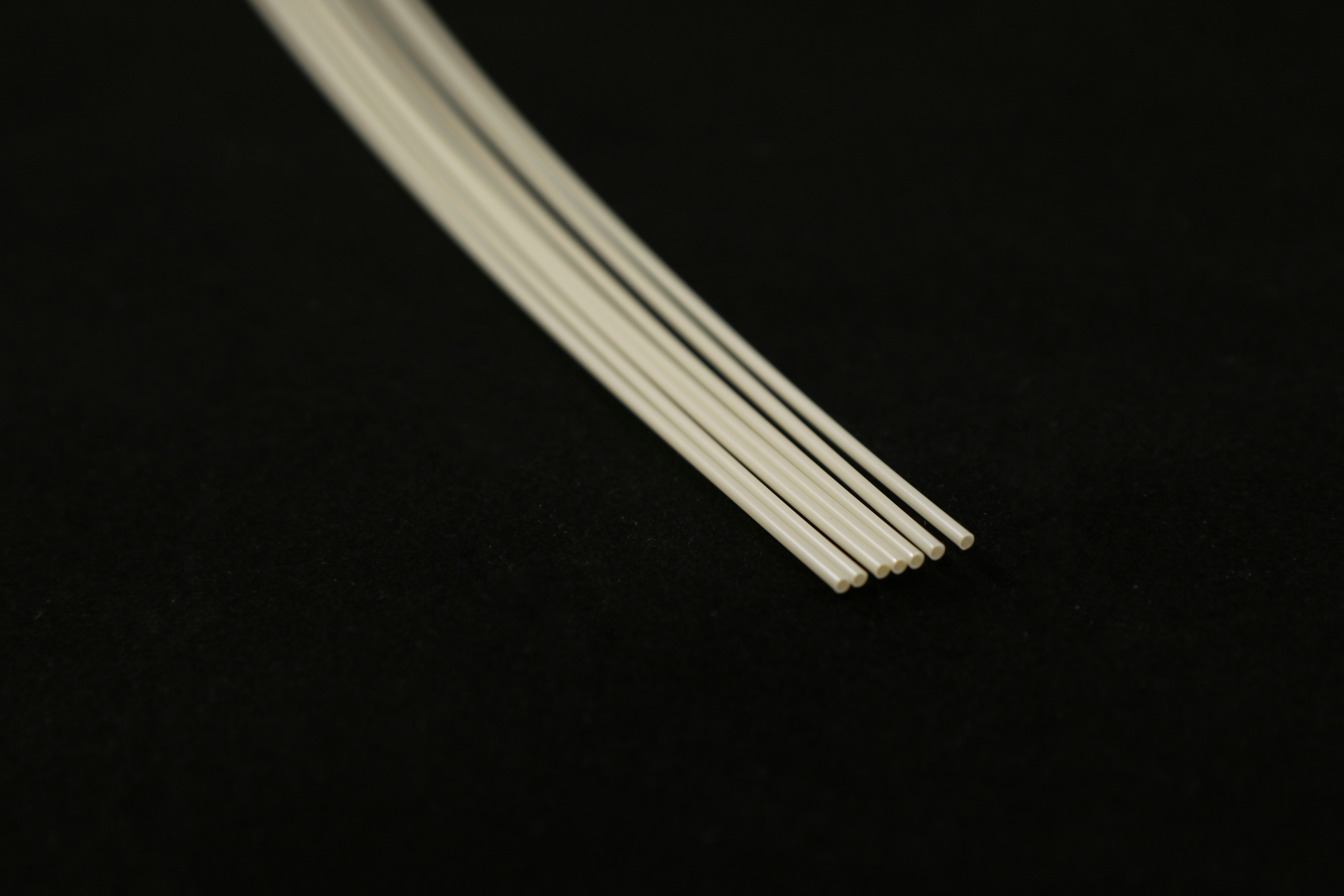

Fully crystallized PEEK microbore tubing, opaque off-white, on a black background
Fully crystallized PEEK tubingPhoto: Polymer Flow Solutions

PEEK

For more than ten years Jonathan's extrusion focus has been high-heat materials such as PEEK. At Spectrum Plastics Group he developed the process to fully crystallize PEEK tubing during extrusion and published the work as white papers. In the crystallinity study, in-line crystallized tubing matched oven-annealed tubing on flexural performance and had more than twice its elongation at yield. His papers explain why datasheet values assume full crystallinity, and why under-crystallized tubing can crack, shrink or go oval after it passes inspection. PEEK runs near 700°F (about 370°C) on purpose-built extruders.

  • Fully crystallized as the default; amorphous only for a specific reason
  • In-line crystallization avoids the mandrels, wires and fixtures a secondary anneal needs
  • Crystallinity checks: color (opaque beige vs. transparent amber), DSC and X-ray
  • Extrudable as microbore, multi-lumen, thin-wall, filament and profile shapes
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.04

PEI

Jonathan covered PEI in his white paper on choosing ultra-engineering polymers for extruded medical parts, written as Senior Extrusion Engineer at Apollo Medical Extrusion. PEI, commonly known as Ultem, is the strongest of the amorphous high-heat polymers, with higher tensile and flexural strength and hardness than the sulfones and a continuous operating temperature of about 390°F. It handles more than 1,000 steam sterilization cycles and holds its color through hundreds of cycles. Because it is amorphous, there is no crystallization to manage as it cools.

  • Used in device sheaths, access devices, sterilization tray dividers and dental tool parts
  • Often covers a sterilization-heat requirement without PEEK's price or processing demands
  • Some hospital solvents can attack it, showing up as environmental stress cracking
  • Transparent amber base color limits light colors
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.05
Two molded amber polysulfone (PSU) pans, one with a lid, showing the natural color of polysulfone
Molded polysulfone (PSU) pans in the resin’s natural amberPhoto: Zzorse, Wikimedia Commons, CC BY-SA 4.0, cropped

Sulfones

The sulfones (PPSU, PSU and PESU) are covered in the same ultra-engineering polymer white paper and in the practice's guide to choosing between PEEK, PEI and the sulfones. They are amorphous high-heat polymers that sit between standard engineering resins and PEEK. PPSU's high ductility makes it a candidate for steerable catheters, and it also offers hydrolytic stability and transparency. PSU is a higher-end replacement for polycarbonate. PESU has the highest tensile and flexural strength of the group and excellent clarity, and can replace PEI in many applications.

  • Process at roughly 350 to 400°C (about 660 to 750°F); all are hygroscopic, so dry thoroughly
  • PPSU is common on reusable instruments that see repeated steam autoclave cycles
  • PESU's stiffness can remove the need for braiding in some applications
  • Prone to environmental stress cracking against certain solvents
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.06

FEP

FEP is part of the melt fluoropolymer work on the practice's specialty list: heat shrink, jacketing and engineered tubing. It melts at about 250 to 270°C, carries a continuous-use rating near 200°C, and is the easiest and usually least expensive of the melt fluoropolymers to run. It offers excellent optical clarity, lubricity and chemical resistance. In medical work FEP dominates heat shrink, most often as the catheter fusing sleeve that recovers over a jacket-and-liner stack to consolidate the build.

  • Heat shrink ratios around 1.3:1 to 2:1, recovering at roughly 190 to 210°C
  • Degrades and releases corrosive, toxic gas above about 420°C
  • Sleeve size and recovery ratio must match the shaft, or recovery is incomplete and voids are trapped
  • Corrosion-resistant screws, barrels and dies
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.07
Coil of translucent white PFA tubing in a shipping box
PFA tubingPhoto: Bushytails, Wikimedia Commons, CC BY-SA 3.0, cropped

PFA

PFA is the melt fluoropolymer that comes closest to PTFE performance while still extruding to tolerance, and part of the practice's melt fluoropolymer work. It is fully fluorinated, melts around 300 to 310°C, and holds mechanical properties at high temperature better than FEP. The rule of thumb from the practice's fluoropolymer guide: reach for PFA when the fluid path runs hot, when the part flexes in service, or when the wall needs PTFE-grade chemical resistance.

  • Runs hotter than FEP; do not reuse an FEP process profile
  • Corrosion-resistant screws, barrels and dies
  • Clean resin handling: contamination shows up as gels, voids and dimensional drift
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.08
A machined white PTFE block with a row of drilled holes, above two rolls of PTFE tape
Machined PTFE block and PTFE tapePhoto: Cjp24, Wikimedia Commons, public domain

PTFE

PTFE marks the far end of the practice's material range, Pebax to PTFE. Its melt viscosity is so high that it never flows like a normal thermoplastic, so it is paste extruded and sintered rather than melt extruded. That one difference changes tooling, economics and options. Part of Jonathan's fluoropolymer work is helping teams decide when paste-extruded PTFE is the right answer and when a melt fluoropolymer such as FEP, PFA or ETFE will do the job on a conventional single-screw line.

  • Paste extrusion and sintering, not melt processing
  • Melt fluoropolymers can make heat-shrink products that PTFE cannot
  • PEEK is replacing PTFE in a growing number of medical applications
  • Fluoropolymer coefficient of friction lands around 0.1 to 0.2, versus about 0.35 for PEEK
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.09

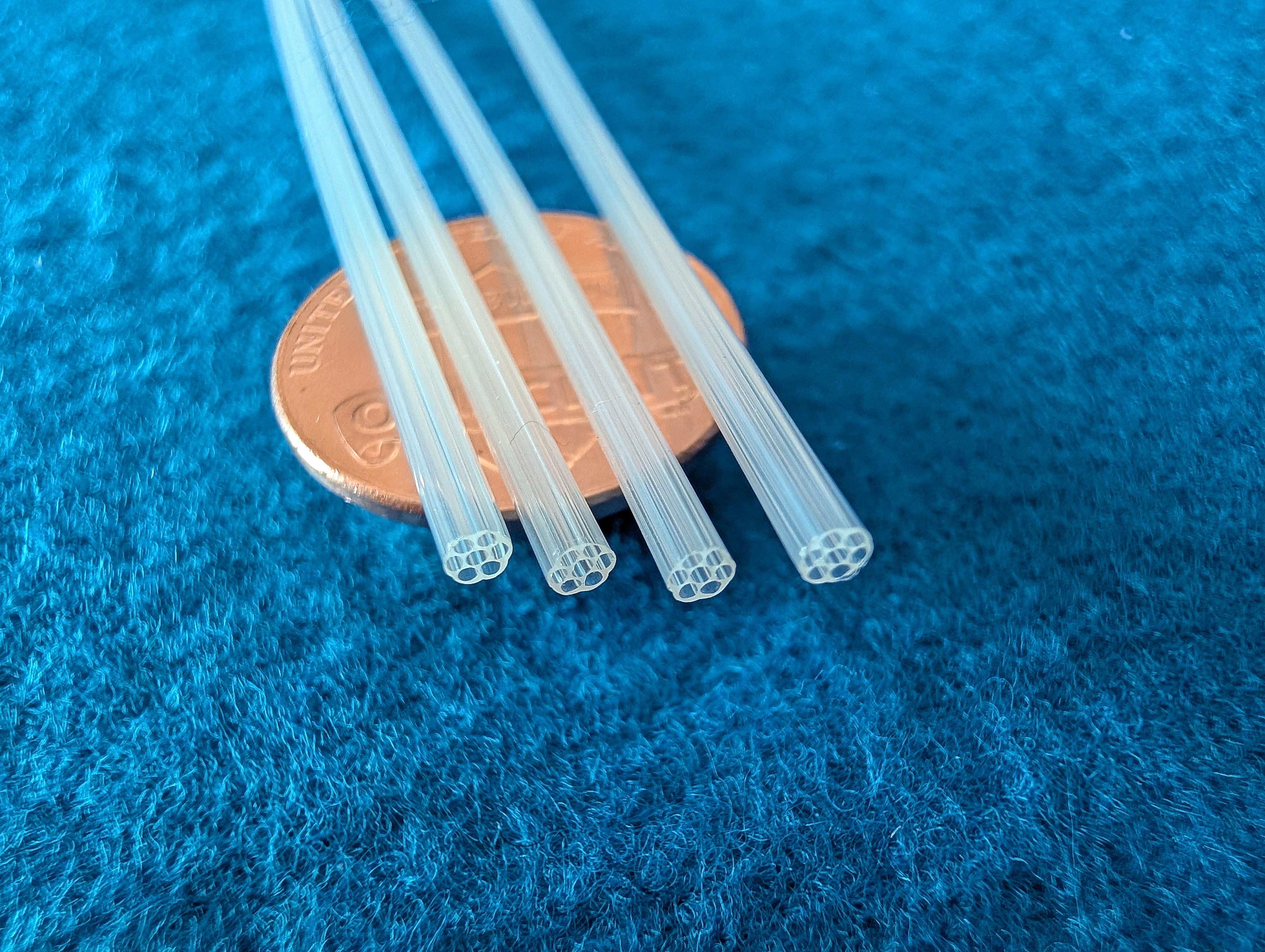

Ends of four multi-lumen Tefzel (ETFE) tubes resting on a US penny for scale
Multi-lumen Tefzel (ETFE) tubing, penny for scalePhoto: Polymer Flow Solutions

ETFE

ETFE is the tough member of the melt fluoropolymer family and part of the practice's melt fluoropolymer work. It melts near 270°C and trades some flexibility and clarity for real mechanical strength, with better impact and abrasion resistance than PTFE. Specify it when the tubing has to survive handling, abrasion or repeated stress and chemical inertness is not the only driver.

  • Not as clear or as soft as FEP
  • Runs at its own temperature; do not reuse another resin's profile
  • Corrosion-resistant tooling, as with all melt fluoropolymers
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.10
Bundle of blue extruded polyamide (nylon) monofilaments
Extruded polyamide monofilament bundlePhoto: MRousse, Wikimedia Commons, CC BY-SA 4.0, cropped

Polyamides

Polyamides (nylons) such as nylon 11 and nylon 12 sit at the engineering level of the materials pyramid, and nylon 12 is common in catheter work alongside Pebax. On the line they need care: nylons can flow in ways that are hard to predict and degrade under shear if the heat profile is off, and the die has to suit the resin.

  • Pick the material before the tool
  • A die cut for a stiff nylon will not run a soft Pebax grade cleanly
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.11
Rows of white glass-fiber-reinforced polysulfone extrusions
Glass-fiber-reinforced polysulfone extrusionsPhoto: Polymer Flow Solutions

FRP

In a Spectrum Plastics Group study published under Jonathan's name, single-lumen tubing was extruded in materials more rigid than PEEK, including two glass-fiber-reinforced grades: a 20% glass polysulfone (Udel GF-120) and a 50% glass polyarylamide (Ixef GS-1022). The fibers added stiffness but gave rougher surface finishes and very low elongation, and small thin-wall parts were fragile. Managing the fibers took custom tooling, even for single-lumen tubing. When reinforced tubing fails it tends to break and leave debris and sharp edges, where unreinforced PEEK kinks but does not break.

  • Custom tooling to manage fibers and surface finish
  • Strength-versus-durability trade-off grows as part geometry gets smaller
  • The 50% glass Ixef was roughly 2x to 3x stiffer than most materials tested
// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.12
A scoop pouring white, semi-translucent polypropylene (PP) pellets onto a pile, on a black background
Polypropylene (PP) pelletsPhoto: Quantum Chemical Corporation, Science History Institute, Wikimedia Commons, CC BY 4.0, cropped

Polyolefins

Polyolefins such as HDPE, LDPE, LLDPE and polypropylene sit at the commodity level of the materials pyramid in Jonathan's ultra-engineering polymer white paper. Unlike PEEK, HDPE and polypropylene fully crystallize regardless of processing method, so the crystallinity control PEEK demands does not apply.

// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.13

Lubricious compounds

Friction matters in catheter and microbore work: Jonathan's PEEK paper puts fluoropolymers around 0.1 to 0.2 coefficient of friction and PEEK near 0.35, low enough that PEEK microbore tubing can move through the vasculature without coatings or lubricious liners in some procedures.

// READ MORE
// RELATED SPECIALTY
// MATERIAL · M.14

Radiopaque compounds

Jonathan's white paper notes that high-heat polymers can be compounded with radiopacifiers and other additives, and the practice offers medical AM filament with radiopaque additives. For high-heat materials, compounding can double or triple material cost, and some additives cannot survive the processing temperatures.

// READ MORE
// RELATED SPECIALTY
Multi-lumen Tefzel (ETFE) tubing shown against a coin for scale

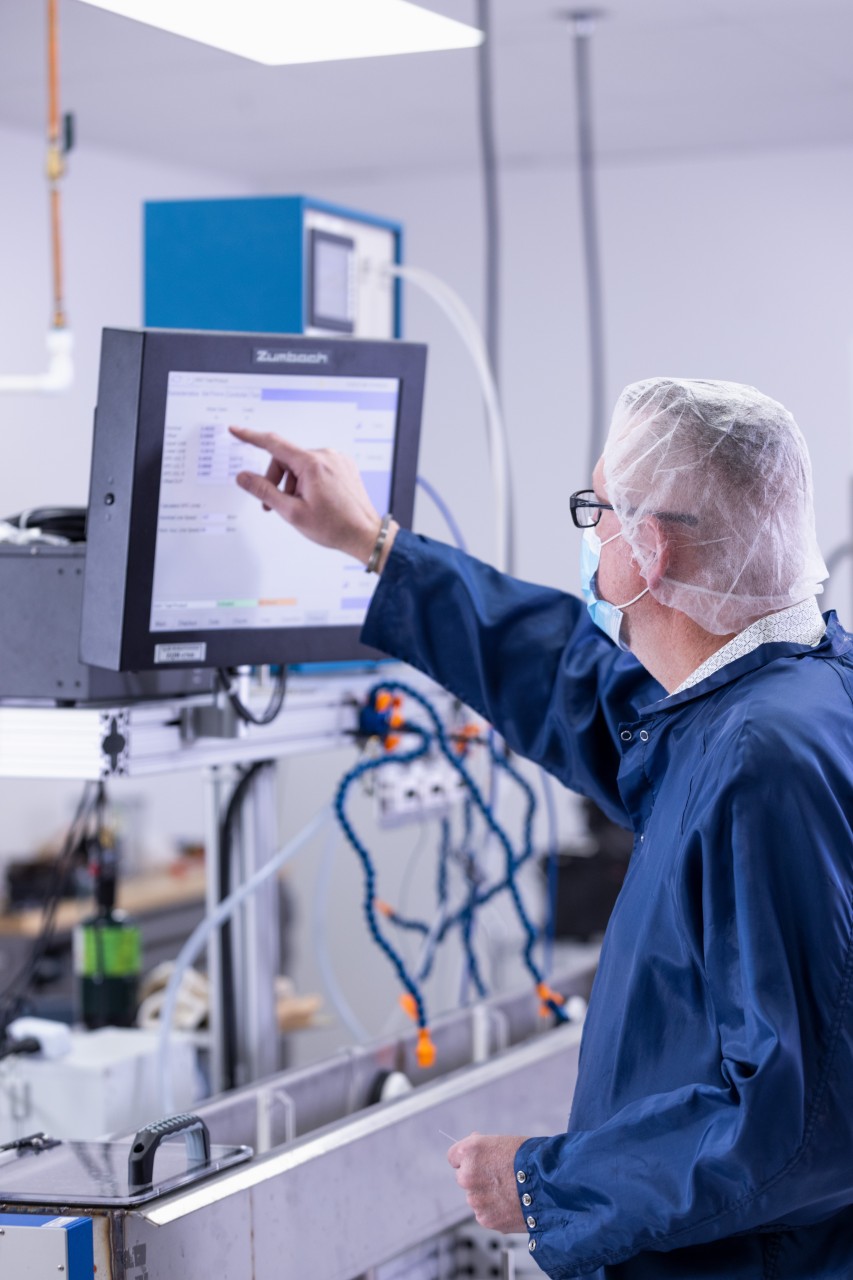

Jonathan Jurgaitis in cleanroom attire adjusting an extrusion line control screen
Fully crystallized PEEK tubing
